Designed for Commercial Production
10 Bar Design

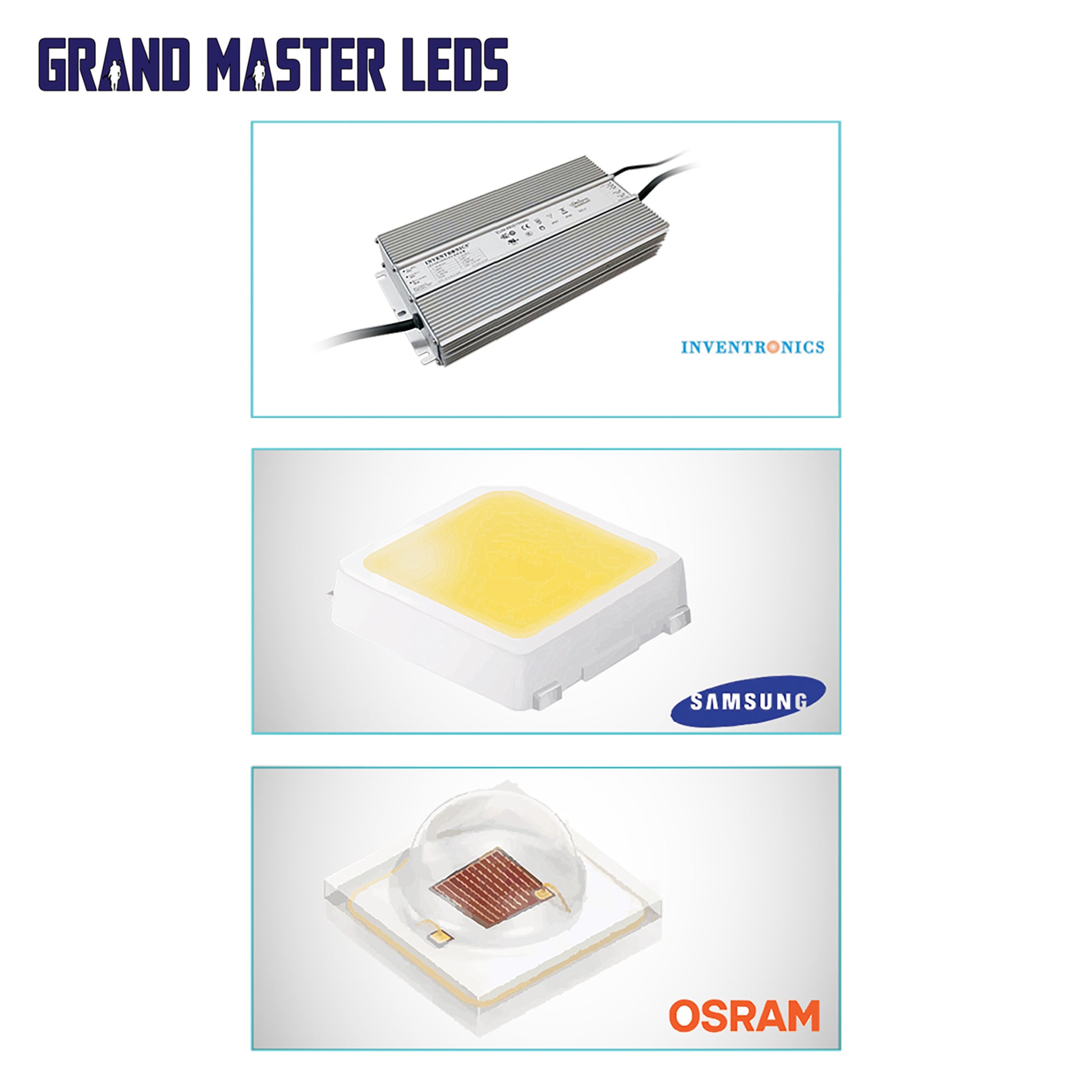

Featuring the Samsung LM301H Diodes, LEDESTAR & Osram Diodes
4 Channels
IP66 Waterproof

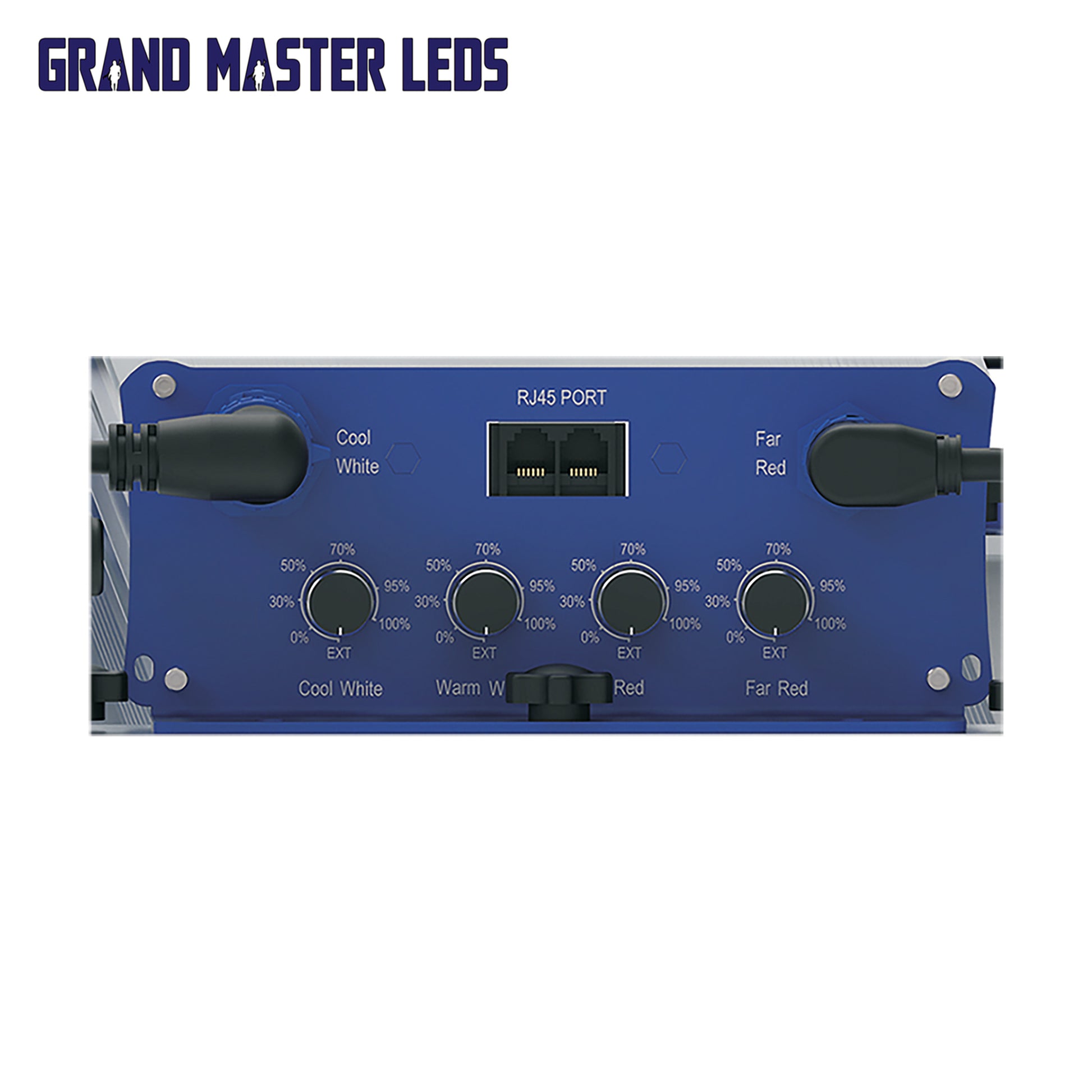

Potentiometer for each channel for Manual control
RJ45 Port

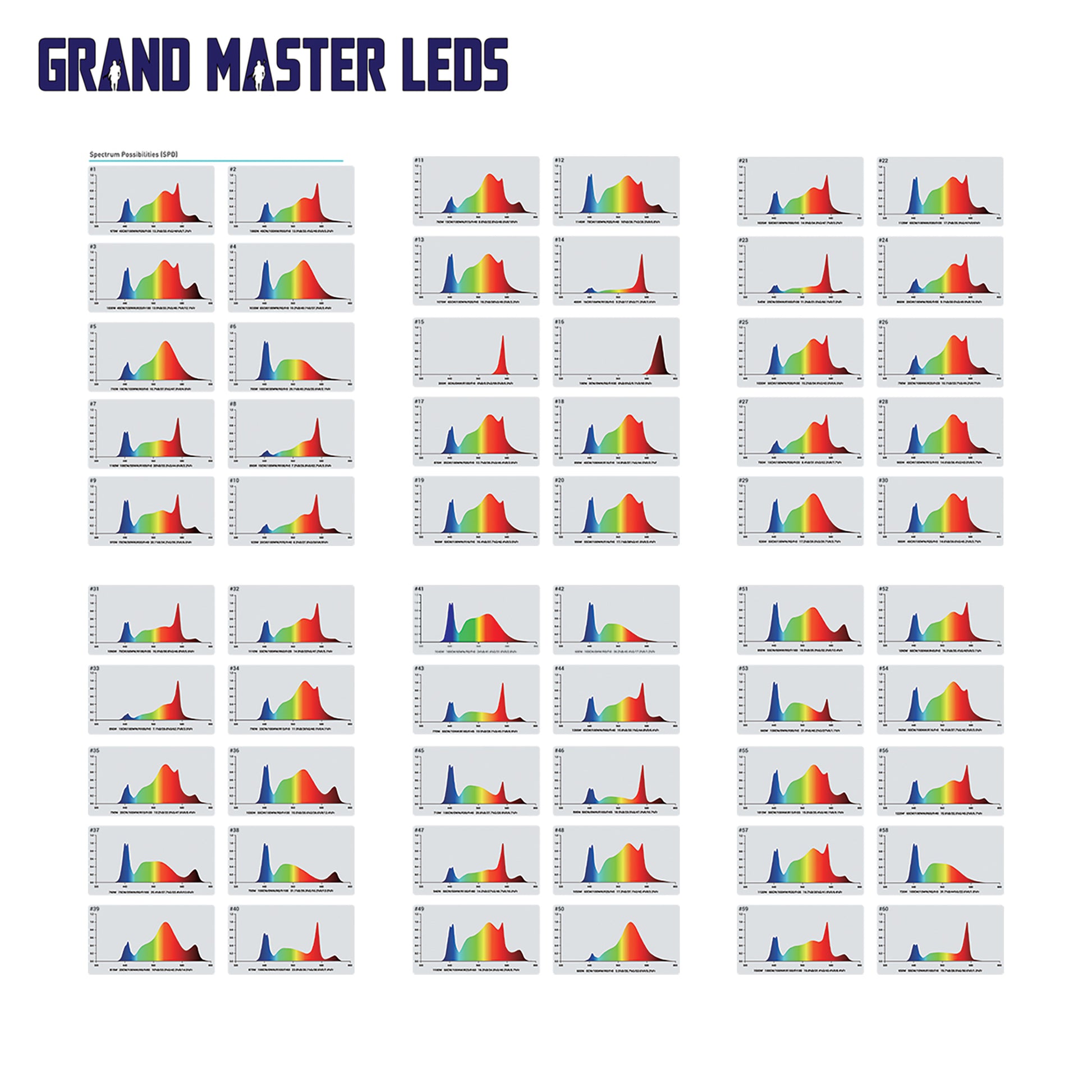

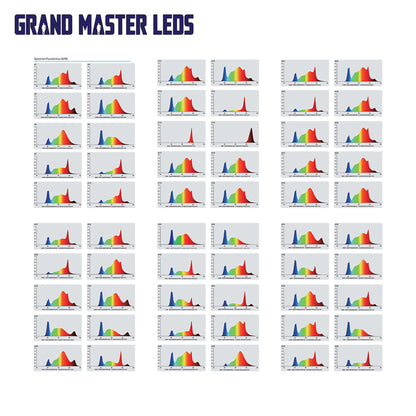

60 Preset Spectrums
Inventronics Drivers
5 Year Warranty
Max Wattage 850W
Voltage Range 120-277V
Amperage 7.4A/120V, 3.8A/240V, 3.3A/277V
Flowering Footprint 5' x 5' System
PPF Efficacy
1st Channel, 730W, PPF.: 2.51, PPF.: 1,832
2nd Channel, 120W, PPF.: 2.52, PPF.: 302
When both 2 channels are on, PPF.: 2.51, Total output 2,134 PPF
Dimensions 43.86" x 43.66" x 3.64" (1114mm x 1109mm x92.5 mm)
Weight 27.23lbs (12.35 kg)
Max Ambient Temp. 104° F (40° C)
Recommended Mounting Height 12-30 inches above canopy depending on wattage
Certifications IP66
